60kg Automatic Washer Extractor: Industrial Capacity, High-Speed Extraction, and Long-Term Reliability

Industrial laundry operations require equipment that can process large volumes of textiles consistently, safely, and economically. A washer extractor is not simply a larger domestic washing machine. It is a purpose-built industrial system that must combine washing performance, mechanical strength, water management, high-speed extraction, operator safety, and dependable operation over many years. When a laundry serves hotels, hospitals, care facilities, textile rental companies, commercial laundries, or industrial workwear users, the choice of washer extractor directly affects productivity, labor costs, textile quality, and customer satisfaction.

The 60kg Automatic Washer Extractor, model SHS-2060, is designed for demanding commercial and industrial laundry environments. With a rated capacity of 60kg, a 600-liter volume, a maximum speed of 815 rpm, and a G Factor of 400, it provides a practical combination of high-volume washing and effective moisture removal. Its configuration is supported by industrial-grade water, steam, hot-water, and drainage connections, making it suitable for facilities that require repeatable production cycles rather than occasional or light-duty washing.

Manufactured by Jiangsu Chuandao Intelligent Equipment Co., Ltd., the machine is presented as a high-strength product using high-end imported spare parts and skilled manufacturing technology. The manufacturer states that the equipment is designed to provide a service life of up to 20 years, subject to appropriate operation and maintenance, and provides a three-year warranty covering the complete machine. If parts are damaged within the warranty period, the manufacturer states that replacement parts will be supplied free of charge.

This article examines the machine’s principal specifications, operating advantages, engineering characteristics, installation considerations, maintenance requirements, and suitability for different laundry applications. It also explains how a 60kg washer extractor can help businesses improve throughput while reducing handling time and controlling operating costs.

Why a 60kg Washer Extractor Is Important in Industrial Laundry

Industrial laundry work is defined by repetition, volume, and accountability. A commercial laundry may process hundreds or thousands of kilograms of textiles each day. Every load must be weighed, sorted, washed, extracted, dried, inspected, folded, and delivered according to a schedule. A machine with insufficient capacity can create bottlenecks, while an oversized machine can increase water, chemical, and energy consumption when it is operated underfilled.

A 60kg washer extractor occupies an important position between medium-capacity commercial equipment and very large industrial systems. It can process substantial loads without requiring the floor space, utility demand, or capital investment associated with the largest machines. This makes it useful for hotels, hospitals, nursing homes, uniform services, laundromats, and textile rental operations that need a dependable production machine but may not require a continuous tunnel washing system.

The washer extractor performs two major tasks in one unit. First, it washes textiles using water, detergent, heat, mechanical action, and controlled drainage. Second, it extracts water by rotating the drum at high speed. Combining these functions reduces manual transfer between a separate washer and extractor and helps shorten the overall processing route.

Efficient extraction is especially important because the residual moisture left in textiles determines the workload placed on the dryer. A load that leaves the washer with less retained water generally requires less drying time. This can improve dryer availability, reduce thermal energy consumption, and increase the number of loads that a laundry can complete during a working shift.

Core Technical Specifications

Specification	Value
Model	SHS-2060
Rated capacity	60kg
Approximate drum volume	600L
Voltage	380V
Maximum speed	815rpm
Power	7.5kW
G Factor	400G
Steam pressure	0.4–0.6MPa
Water inlet pressure	0.2–0.4MPa
Noise level	≤70dB
Steam connection	DN25
Water inlet connection	DN40
Hot-water connection	DN40
Drain connection	DN110
Drum diameter	1080mm
Drum depth	680mm
Machine weight	2600kg
Listed dimensions	1702 × 0538 × 2025mm

The values above should be reviewed by the purchaser, installer, and technical department before commissioning. In particular, the listed overall dimension contains the value “0538,” which may require confirmation because industrial equipment dimensions are normally shown with a clearly stated four-digit width where applicable. Final foundation drawings, shipping documents, and installation manuals should always take priority over preliminary product data.

High-Capacity Washing for Commercial Production

The 60kg rated capacity allows operators to consolidate more textiles into each cycle than would be possible with smaller commercial machines. Fewer cycles can mean fewer loading and unloading operations, lower labor requirements, and a more predictable production schedule. For facilities processing sheets, towels, uniforms, workwear, healthcare textiles, or hospitality linen, this capacity can provide a useful balance between flexibility and output.

Capacity, however, should be understood as a working target rather than a figure that must be reached in every load. Different textiles have different densities and absorbency. Towels, blankets, and heavily soiled garments may require a lower loading ratio than lightweight sheets. Operators should follow textile-specific loading recommendations so that water, detergent, and mechanical action can circulate effectively through the load.

The 600-liter drum volume provides space for the movement of textiles during washing. Adequate internal volume helps prevent excessive compression and enables better contact between fabric surfaces, wash liquor, and cleaning chemicals. Correct loading also supports balanced distribution during extraction, which is essential for vibration control and safe high-speed operation.

Compared with a collection of small machines, one 60kg washer extractor can simplify workflow. A laundry may need fewer control points, fewer loading doors, less floor space per kilogram of installed capacity, and fewer separate maintenance schedules. The exact benefit depends on the facility’s daily volume and the number of shifts, but consolidating production into a robust industrial platform can make planning easier.

Effective Moisture Removal with a 400G Extraction Factor

The G Factor is a useful indicator of extraction performance. It describes the centrifugal force applied to textiles during the high-speed spin phase. A 400G rating places this machine in a productive industrial category, helping remove a substantial amount of water before textiles enter the dryer or finishing department.

Higher extraction does not automatically guarantee lower operating cost in every application. Results also depend on textile type, load balance, wash chemistry, temperature, drainage design, and the condition of the machine. Nevertheless, a properly operated 400G washer extractor can provide a strong foundation for efficient drying. For a busy commercial laundry, this can improve dryer turnover and reduce the time that linens remain in the production cycle.

The maximum rotational speed is listed as 815rpm. High-speed rotation creates demanding mechanical conditions, so the machine must be installed on an appropriate foundation and operated with properly balanced loads. Operators should never bypass safety controls or attempt to open the door while the drum is moving. Routine inspection of bearings, drive components, door systems, suspension or mounting points, and safety interlocks is essential.

Compared with conventional low-extraction washing machines, a high-speed washer extractor can provide several practical advantages:

1. Lower residual moisture before drying.

2. Shorter average drying times.

3. Greater dryer capacity over a working shift.

4. Reduced manual transfer between washing and extraction equipment.

5. Better suitability for production environments where cycle time is important.

These benefits are most visible when the machine is integrated with correctly sized dryers, adequate drainage, suitable steam or heating systems, and an organized material-handling process.

60kg Automatic Washer Extractor

Industrial Construction and High-Strength Design

Industrial washing equipment operates under conditions that are much more demanding than those found in residential laundry. A commercial machine may run multiple cycles each day, handle wet loads weighing hundreds of kilograms, and experience repeated acceleration, deceleration, heating, chemical exposure, and drainage. The frame, drum, bearings, door assembly, drive system, and control components must therefore be selected and assembled for sustained use.

The manufacturer describes this model as having high strength and a long service-life design. The stated service life of up to 20 years is an important indication of the intended equipment class, although actual service life depends on load frequency, water quality, chemical selection, installation quality, preventive maintenance, and replacement of wearing parts.

The use of high-end imported spare parts is identified as one of the product’s strengths. Imported components can provide advantages where they are selected from reliable suppliers and correctly matched to the machine’s electrical, mechanical, and environmental requirements. Component quality is only one part of reliability, however. The quality of design integration, assembly accuracy, welding, alignment, testing, and after-sales support is equally important.

A strong machine structure contributes to stable operation during high-speed extraction. Excessive vibration can damage both the washer extractor and surrounding building structures, while repeated imbalance can shorten the service life of bearings, motors, couplings, and fasteners. A robust frame and correctly engineered drum support help the machine withstand the forces generated during production cycles.

High-strength construction also supports long-term serviceability. A machine that can be inspected, adjusted, and repaired without unnecessary disassembly can reduce maintenance downtime. For industrial customers, maintainability is a major competitive consideration because the cost of an unavailable machine may include delayed orders, overtime, missed delivery times, and reduced customer confidence.

Manufacturing Process and Quality Focus

The manufacturer states that the equipment is produced using skilled manufacturing technology. For an industrial washer extractor, manufacturing quality should be evaluated across several stages rather than based on a single feature. These stages include material preparation, component machining, frame fabrication, welding, surface treatment, drum assembly, electrical installation, testing, packaging, and documentation.

Material Preparation and Component Selection

Reliable manufacturing begins with suitable materials and correctly specified components. The drum and product-contact areas must tolerate water, detergents, alkaline chemistry, heat, repeated mechanical movement, and wet textile loads. Structural parts must be capable of supporting the machine’s weight and dynamic forces. Electrical components must be suitable for the stated voltage and the operating environment.

Component selection should also consider replacement availability. A machine may operate for many years, but parts such as seals, bearings, valves, contactors, sensors, belts, hoses, and door gaskets are wear items. The availability of technical documentation and replacement parts helps preserve the value of the original investment.

Frame Fabrication and Welding

The frame is fundamental to machine stability. Accurate cutting, forming, and welding help ensure that mounting points remain aligned and that the drum, drive, door, and piping systems are correctly positioned. Poor alignment can produce unnecessary vibration and uneven mechanical stress.

Professional fabrication should include dimensional inspection and visual examination of welded joints. Depending on the component and applicable standards, manufacturers may also use additional inspection methods. Consistent surface preparation and protective treatment can help reduce corrosion, especially in humid laundry rooms where warm water, steam, detergents, and wet textiles are present throughout the day.

Drum and Drive Assembly

The drum must be accurately assembled because even a small imbalance becomes more significant as rotational speed increases. Assembly procedures should control concentricity, shaft alignment, bearing seating, fastener tightening, and the relationship between the drum and outer housing. The drive system should be tested for smooth rotation, correct direction, acceleration, braking, and abnormal noise.

The listed 815rpm maximum speed and 400G extraction factor make assembly accuracy particularly important. High-speed extraction must be supported by appropriate safety systems and a suitable installation base. The final performance of the machine is therefore a combination of design, manufacturing precision, commissioning, and operator practice.

Electrical and Control-System Testing

Electrical installation should be checked for correct wiring, grounding, insulation, overload protection, emergency-stop function, door interlocking, water-level control, heating or steam control, drainage sequence, and motor protection. Controls should be tested through representative cycles before the machine is placed into full production.

A structured factory test can identify problems before shipment. Typical checks may include empty-drum operation, water filling, drainage, rotation at different speeds, door locking, leak inspection, heating or steam function, and vibration behavior. The purchaser should request the available test records, operating manual, wiring information, and recommended maintenance schedule.

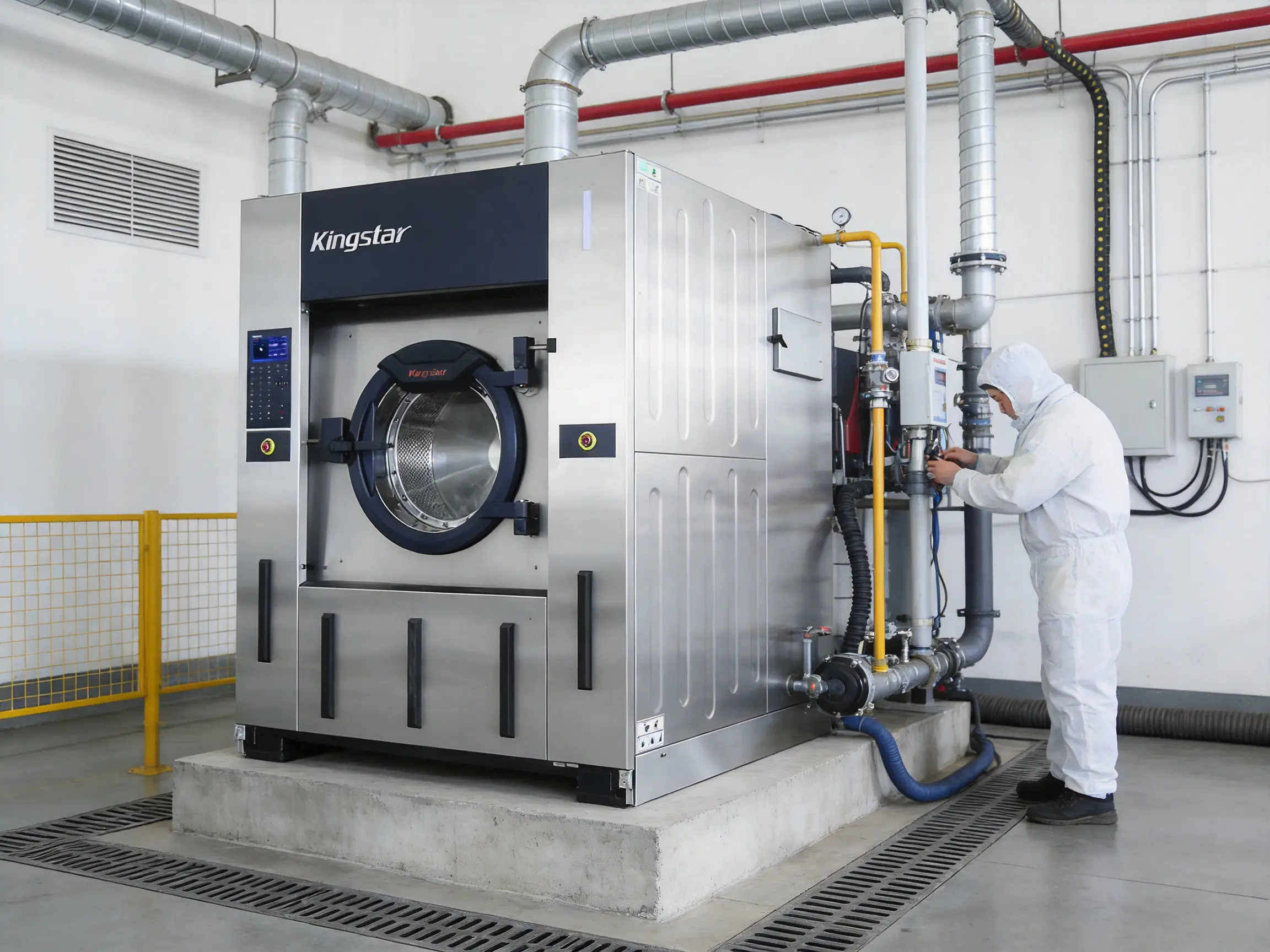

Steam, Water, and Drainage Integration

The machine is specified for steam pressure between 0.4 and 0.6MPa. This range allows the washer extractor to be integrated into facilities that use a central steam boiler or steam distribution system. Steam can support hot-water production or heating processes, depending on the machine configuration and the laundry’s process design.

The listed steam connection is DN25. Steam installation must include suitable valves, filters, pressure regulation, condensate management, insulation, and safety protection in accordance with local codes. The exact arrangement should be designed by qualified professionals. Incorrect steam pressure, poor condensate drainage, or unsuitable piping can lead to unstable heating, water hammer, component damage, or unsafe operating conditions.

The water inlet pressure requirement is listed as 0.2 to 0.4MPa. Stable water pressure helps the machine fill consistently and maintain repeatable cycle times. If the facility has fluctuating pressure, insufficient flow, or water treatment issues, an engineer may need to consider storage tanks, booster pumps, filters, softeners, or other treatment equipment.

Both the standard water inlet and hot-water connection are specified as DN40. Separate hot and cold water supplies can help a laundry manage temperature more efficiently. Using preheated water may reduce the time required to reach process temperature, particularly where the facility has an efficient central hot-water system. Water quality should also be monitored because hardness, iron, sediment, and chemical contamination can affect heating surfaces, valves, seals, textiles, and detergents.

The drain connection is specified as DN110. Industrial laundry drainage must be designed for high flow rates and must prevent backflow or standing water. The drain route should be short where practical, properly supported, and sized according to local plumbing requirements. Adequate floor drainage and spill management are important for worker safety and equipment protection.

Operational Advantages over Smaller or Lower-Extraction Equipment

The most important advantage of this model is its alignment with production-scale laundry work. A 60kg capacity allows the operator to process substantial loads while retaining more flexibility than a very large continuous system. The 400G extraction factor can reduce the amount of moisture carried into drying. The 7.5kW power rating, combined with steam and hot-water connections, supports integration into an industrial utility environment.

Compared with smaller machines, the washer extractor can reduce the number of cycles required for a given daily volume. This may simplify staffing and make it easier to coordinate washing with drying, ironing, folding, and dispatch. It may also reduce the total number of machines that need to be cleaned, inspected, and maintained.

Compared with basic low-speed washing machines, the product offers high-speed extraction as part of the same process. This can remove the need for a separate extraction stage in applications where a dedicated extractor would otherwise be used. Fewer transfers can reduce handling time and the risk of mixing batches or damaging delicate items through unnecessary movement.

Compared with equipment built for light commercial use, the machine’s stated high-strength construction and long service-life objective are more appropriate for repeated industrial cycles. A three-year whole-machine warranty can also reduce the purchaser’s exposure during the early ownership period. Warranty conditions should be reviewed carefully, including exclusions, travel costs, installation requirements, consumables, and the process for obtaining replacement parts.

Competitive advantage should not be judged by purchase price alone. A proper comparison should include:

1. Rated capacity and usable loading range.

2. Extraction factor and residual moisture performance.

3. Water and steam requirements.

4. Electrical consumption and connected load.

5. Noise and vibration behavior.

6. Ease of access for maintenance.

7. Availability and cost of replacement parts.

8. Warranty coverage and response time.

9. Manufacturer experience with export and industrial installations.

10. Compatibility with existing dryers, boilers, water systems, and drainage.

When evaluated across these categories, an industrial washer extractor can deliver a lower total cost of ownership even if its initial purchase price is higher than that of a smaller or less robust machine.

Applications in Different Laundry Sectors

Hotel and Hospitality Laundry

Hotels require consistent processing of bed sheets, pillowcases, towels, bathrobes, table linen, and staff uniforms. The 60kg capacity can help central laundry departments process daily room turnover volumes efficiently. High extraction is particularly useful for towels and heavy cotton textiles, which can retain significant water after washing.

Hospitality laundries often work under strict time pressure. Rooms may need to be prepared within a narrow window, and linen shortages can directly affect occupancy and guest satisfaction. A reliable washer extractor can help maintain a predictable production schedule and reduce delays between washing and drying.

Hospital and Healthcare Laundry

Healthcare laundries process bedding, gowns, scrubs, towels, patient garments, and other textiles that may require controlled wash programs. The machine can be integrated into a validated laundry process using appropriate detergents, temperatures, disinfection procedures, and separation practices.

Healthcare operators must define process requirements carefully. The washer extractor alone does not guarantee disinfection or infection control. Results depend on the complete system, including textile segregation, chemical dosing, temperature control, cycle time, drainage, handling, drying, finishing, and quality verification.

Industrial Workwear and Uniforms

Factories, logistics companies, construction contractors, food processors, and public-service organizations often need to wash uniforms and workwear. These textiles may contain oil, grease, dust, food residue, or industrial soil. A 60kg machine can support centralized processing and reduce reliance on employees taking workwear home.

Workwear programs benefit from consistent batch processing because garments can be tracked, inspected, repaired, and returned according to a controlled schedule. Suitable chemical dosing and textile-specific programs are important to remove soil without unnecessarily shortening garment life.

Textile Rental and Commercial Laundry Services

Commercial laundries that serve multiple customers need equipment capable of processing different textile categories throughout the day. The washer extractor can be used for separate batches of hospitality linen, healthcare textiles, uniforms, mats, and other commercial products, provided the machine is cleaned and programmed appropriately between product groups.

In rental operations, throughput and reliability affect profitability. A machine that completes consistent cycles with fewer unscheduled interruptions can help the operator plan labor, vehicle dispatch, and customer service more effectively.

Care Homes and Institutional Facilities

Residential care homes, schools, correctional facilities, and other institutions may need to process significant quantities of linen but may not require an extremely large production line. A 60kg capacity can provide a practical solution for facilities that need industrial performance within a controlled site-based laundry.

Noise, Workplace Safety, and Facility Design

The listed noise level is no more than 70dB. Actual noise can vary according to installation, floor construction, load balance, piping, bearing condition, and nearby surfaces. A properly installed machine can contribute to a more comfortable workplace than equipment that produces excessive vibration or abnormal mechanical noise.

Safety begins with site planning. The machine weighs approximately 2600kg, so the floor, foundation, access route, lifting equipment, and installation area must be evaluated before delivery. The purchaser should verify door widths, ceiling clearance, loading capacity, machine orientation, service access, and emergency routes.

Operators should receive training before using the machine. Training should cover textile sorting, loading limits, detergent handling, program selection, door operation, imbalance response, emergency stops, cleaning, and reporting of unusual noise or vibration. No operator should enter the drum or attempt repairs without following an approved lockout and isolation procedure.

Hot surfaces, steam, chemicals, electrical power, moving components, and wet floors create normal industrial hazards. The laundry should use appropriate personal protective equipment and maintain clear procedures for chemical storage, spill response, ventilation, and first aid.

Maintenance Strategy for Long-Term Performance

Preventive maintenance is one of the most important factors affecting the service life of a washer extractor. Even a high-quality machine can suffer premature failure if it is overloaded, operated with unbalanced loads, exposed to untreated water, or neglected between service intervals.

Daily Checks

Operators should inspect the door gasket, drum interior, drain area, detergent injection points, hoses, visible fasteners, and control panel. Any water leak, unusual noise, vibration, odor, or error message should be reported promptly. The door and gasket should be cleaned so that residue does not accumulate or damage the sealing surface.

Weekly Checks

Weekly maintenance may include inspection of water and steam connections, drain flow, filters, chemical lines, emergency-stop operation, door interlock function, and visible signs of corrosion. The surrounding floor should be kept clean and dry. Lint, detergent residue, and textile debris should not be allowed to accumulate around motors, drains, or ventilation openings.

Periodic Technical Service

Qualified maintenance personnel should inspect bearings, drive components, electrical terminals, insulation, valves, sensors, fasteners, frame joints, and safety systems according to the manufacturer’s schedule. Parts subject to wear should be replaced before failure whenever practical. Correct lubrication, alignment, and tightening procedures should be followed.

Water treatment should also be considered. Hard water can create scale, increase detergent consumption, reduce heating efficiency, and shorten the life of valves and seals. Depending on local water quality, a softener, filtration system, or dosing adjustment may be required.

Warranty and After-Sales Support

The manufacturer states that the whole machine carries a three-year warranty. It also states that if parts are damaged within three years, the manufacturer will replace the parts free of charge. This warranty commitment can be valuable to commercial buyers because early component failures may otherwise create unexpected costs.

Before purchase, customers should obtain the complete warranty terms in writing. Important questions include whether the warranty covers labor, shipping, installation defects, consumable parts, electrical damage, improper chemical use, unauthorized modifications, and damage caused by inadequate foundations or utilities.

After-sales support should include installation guidance, commissioning assistance, operating instructions, spare-parts information, troubleshooting procedures, and access to qualified technical personnel. A supplier’s ability to provide clear documentation can be as important as the machine’s initial specifications, particularly when the equipment is installed outside the manufacturer’s home region.

The stated long service-life target and three-year warranty work together to communicate a long-term ownership philosophy. The warranty protects the initial operating period, while the machine’s high-strength design and replaceable components are intended to support continued use beyond the warranty term.

Installation and Commissioning Checklist

Before delivery, the purchaser should confirm the machine’s final dimensions, shipping weight, door orientation, service clearances, lifting points, and foundation requirements. The listed dimensions should be verified against the final technical drawing, especially because the width is shown as “0538” in the supplied specification.

Utility preparation should include:

1. A suitable 380V electrical supply with correct protection and grounding.

2. Water supply within the required 0.2–0.4MPa pressure range.

3. Hot-water supply where required, using the specified connection arrangement.

4. Steam supply within the 0.4–0.6MPa range where steam heating is used.

5. Drainage capable of handling the machine’s discharge volume through a DN110 connection.

6. Safe chemical storage and dosing arrangements.

7. Adequate ventilation, lighting, access, and floor drainage.

8. A foundation capable of supporting the 2600kg machine and dynamic extraction forces.

Commissioning should begin with inspection for shipping damage and verification of all connections. The machine should be leveled and secured according to the installation manual. Initial tests should be performed with an empty drum, followed by controlled test loads. Operators should confirm filling, heating, washing, drainage, extraction, door locking, emergency-stop operation, and abnormal-vibration response.

How to Improve Efficiency in Daily Operation

Machine efficiency depends heavily on operating discipline. Loads should be weighed or estimated accurately, sorted by textile type and soil level, and loaded according to the recommended capacity. Underloading wastes water and energy per kilogram, while overloading can reduce cleaning quality, cause imbalance, and place unnecessary stress on mechanical components.

Wash programs should be matched to the textile and soil. Using excessive chemical concentration does not necessarily improve cleaning and may increase rinsing requirements, fabric wear, wastewater load, and operating cost. Automated chemical dosing, if available in the facility, can improve repeatability and reduce manual handling.

Drainage should be monitored because restricted flow can lengthen cycles and reduce extraction performance. If textiles leave the machine unusually wet, the operator should check loading balance, drain obstruction, program settings, and machine condition rather than simply increasing drying time.

Production planning can also improve utilization. Loads can be grouped by textile category, color, soil level, temperature, or customer. This reduces unnecessary program changes and supports consistent chemical and water use. Maintenance activities should be scheduled during planned downtime rather than after an unexpected failure.

Economic Value and Total Cost of Ownership

The economic value of a washer extractor comes from more than its purchase price. The total cost of ownership includes utilities, labor, chemicals, repairs, replacement parts, downtime, textile damage, installation, and eventual replacement. A machine that costs less initially may become more expensive if it consumes more water, leaves textiles wetter, requires frequent repairs, or cannot meet production deadlines.

The 60kg capacity can improve labor efficiency by reducing the number of loading and unloading cycles. The 400G extraction factor can reduce the workload on dryers. The stated long service-life design can spread the capital cost across many years of operation. The three-year warranty can help manage early ownership risk.

To calculate potential savings, a laundry should record its current loads per day, average load weight, water consumption, drying time, labor time, energy price, chemical cost, and downtime. It can then compare these figures with expected performance after installation. A practical evaluation should use conservative assumptions and should account for the cost of required utility upgrades.

Return on investment will vary by application. A high-volume commercial laundry running several shifts may benefit quickly from increased capacity and reduced drying time. A smaller facility may place greater value on reliability, reduced manual handling, and the ability to process occasional large batches without outsourcing.

Purchasing Considerations for International Buyers

International customers should confirm electrical standards, voltage frequency, local steam regulations, pressure-vessel requirements, safety certification, customs documentation, and language requirements before ordering. The listed voltage is 380V, but the purchaser should confirm whether the local supply is compatible and whether the machine is configured for the required frequency.

Buyers should request a complete technical package that includes general arrangement drawings, foundation information, utility requirements, electrical diagrams, piping diagrams, operating instructions, maintenance schedules, spare-parts lists, and warranty terms. Clear documentation can reduce installation delays and help local technicians support the equipment.

Packaging and transportation should also be discussed. A machine weighing approximately 2600kg may require specialized lifting and unloading equipment. The route from the receiving area to the laundry room should be measured in advance. Insurance, delivery inspection, and storage conditions should be agreed upon before shipment.

Frequently Asked Questions

What is the rated capacity of the washer extractor?

The rated capacity is 60kg. The appropriate working load may vary depending on textile type, density, absorbency, and the selected wash program.

What is the model number?

The model is identified as SHS-2060, with a 60kg capacity.

What is the maximum extraction speed?

The listed maximum speed is 815rpm. High-speed operation requires proper installation, balanced loads, functional safety controls, and regular inspection of mechanical components.

What does the 400G specification mean?

The 400G rating represents the centrifugal extraction factor. It indicates the force available to remove water from textiles during high-speed spinning and can help reduce residual moisture before drying.

What voltage does the machine use?

The supplied specification lists 380V. Electrical frequency, phase configuration, protection requirements, and local compatibility should be confirmed with the manufacturer and a qualified electrician before installation.

Does the machine use steam?

The specification lists a steam pressure range of 0.4–0.6MPa and a DN25 steam connection. The actual steam arrangement should be designed according to the machine configuration, local regulations, and the facility’s boiler and condensate systems.

What are the water pressure requirements?

The listed water inlet pressure is 0.2–0.4MPa. The facility should also provide sufficient flow, suitable water quality, and properly sized piping.

What type of drainage is required?

The machine is listed with a DN110 drain connection. The drainage system should be designed to handle industrial discharge volumes and prevent backflow or standing water.

How noisy is the machine?

The listed noise level is no more than 70dB. Actual noise depends on installation, floor construction, load balance, machine condition, and surrounding surfaces.

How heavy is the washer extractor?

The listed weight is approximately 2600kg. The building floor, foundation, delivery route, and lifting equipment must be checked before installation.

What warranty is provided?

The manufacturer states that the complete machine has a three-year warranty and that damaged parts will be replaced free of charge within three years. Buyers should obtain the full warranty terms and exclusions in writing before ordering.

How long is the expected service life?

The manufacturer describes the machine as having a service life of up to 20 years. Actual service life depends on installation, operating conditions, maintenance, water quality, chemical use, loading practices, and replacement of wear parts.

Is the machine suitable for hospitals?

It can be considered for hospital laundry applications when integrated into a properly validated textile-processing system. The machine itself does not replace healthcare laundry procedures, chemical validation, segregation controls, or infection-prevention requirements.

What should be checked before ordering?

Customers should confirm final dimensions, foundation requirements, electrical configuration, steam and water utilities, drainage, door orientation, spare-parts support, warranty terms, installation services, safety requirements, and compatibility with existing dryers and finishing equipment.

Conclusion

The 60kg Automatic Washer Extractor is designed for commercial and industrial laundries that need substantial washing capacity, effective moisture removal, and dependable repeated operation. Its 600-liter volume, 815rpm maximum speed, and 400G extraction factor support efficient processing of linen, towels, uniforms, healthcare textiles, and other commercial laundry products.

The machine’s main advantages include high production capacity, integrated washing and extraction, industrial utility connections, a listed noise level of no more than 70dB, high-strength construction, the use of high-end imported spare parts, and a stated long service-life objective. The three-year whole-machine warranty and free replacement of damaged parts during the warranty period add further value for purchasers seeking to control ownership risk.

Jiangsu Chuandao Intelligent Equipment Co., Ltd. emphasizes skilled manufacturing technology and robust construction. For customers, the most important next step is to evaluate the complete installation and ownership package rather than focusing on capacity alone. Foundation design, utilities, operator training, maintenance, water quality, chemical management, and after-sales support all influence final performance.

When correctly installed and maintained, this washer extractor can become a central component of a productive laundry system. Its combination of 60kg capacity and high-speed extraction makes it suitable for facilities that need to increase throughput, reduce drying workload, limit manual transfers, and maintain consistent textile-processing standards over many years.

References

1. Product specification sheet for the SHS-2060 60kg Automatic Washer Extractor, supplied product materials.

2. Industrial laundry equipment planning and utility-integration principles, technical reference material.

3. Commercial textile-care and laundry process management guidance.

4. General maintenance principles for industrial washing, extraction, and drying equipment.

5. Workplace safety practices for machinery, steam systems, chemicals, electrical installations, and industrial laundry facilities.

Product: 60kg Automatic Washer Extractor
